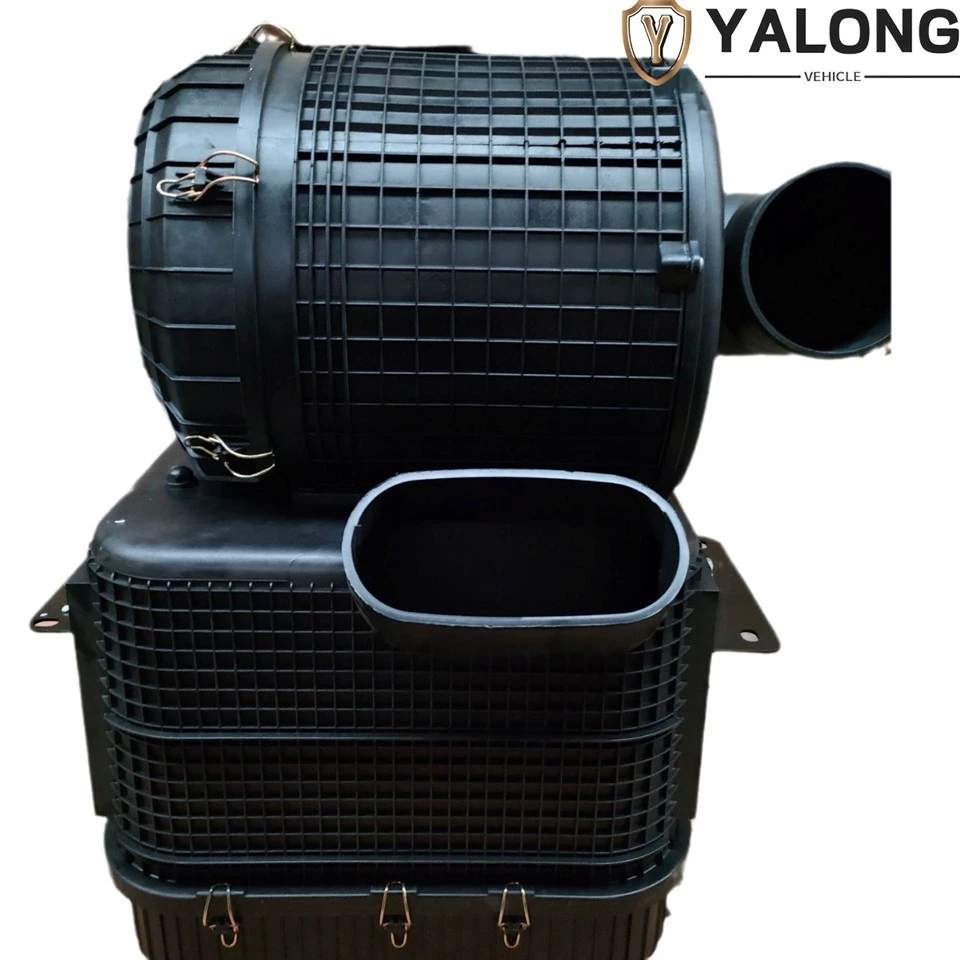

OEM DZ91259190042 Oil Bath Air Filter Assembly For Shacman Delong F3000 / X3000 / H3000 / M3000 Heavy Duty Truck
Short Description
The DZ91259190042 Oil Bath Air Filter Assembly is the genuine intake air filtration solution for Shacman Delong series heavy-duty trucks, including F3000, X3000, H3000, M3000, and F2000 models. This complete assembly features a high-strength ABS plastic housing, pre-cleaner cartridges, and a K2841 main filter element, delivering 99.5% filtration efficiency for particles 0.3μm and larger. Designed to protect engines from dust, sand, and debris in the most demanding environments, this assembly ensures optimal air intake, complete fuel combustion, and extended engine life. Ideal for long-haul logistics, construction, and mining operations.
Product Overview
The DZ91259190042 is a complete, drop-in replacement oil bath air filter assembly engineered specifically for Shacman (Shaanxi) heavy-duty trucks. As the "breathing guardian" of the engine, this assembly combines centrifugal pre-cleaning, oil bath capture, and a wire mesh filter element to deliver clean, unrestricted airflow to the engine.
Manufactured to exact OEM specifications, this assembly eliminates the need for modifications-mounting points, inlet/outlet dimensions, and sealing surfaces match the original factory part perfectly.
Key Features & Benefits
- OEM Precision Fit: Direct replacement for Shacman Delong F3000/X3000/H3000/M3000/F2000. No drilling, cutting, or adaptation required.
- Superior Filtration Efficiency: ≥99.5% for particles 0.3μm and larger. The dual-stage design captures coarse debris with pre-cleaner cartridges and fine dust with the K2841 main element.
- Durable ABS Construction: High-strength ABS engineering plastic housing resists impact, vibration, and extreme temperatures (-30°C to 80°C) without deformation or cracking.
- Extended Service Life: Filter element replacement every 20,000 km (standard) or 15,000 km (dusty roads); housing service life ≥3 years.
- Engine Protection: Prevents abrasive dust from entering cylinders, reducing piston, ring, and valve wear.
- Cost-Effective Maintenance: Long filter life and optimized airflow reduce fuel consumption and maintenance downtime.
Application & Compatibility
This air filter assembly is specifically designed for Shacman (Shaanxi) heavy-duty trucks and is compatible with the following models:
| Brand | Series / Models |
|---|---|
| Shacman (Shaanxi) | Delong F3000, F2000, X3000, H3000, M3000, L3000 |
| Shacman (Shaanxi) | Xuande X6, X9; Aolong |
| Engine Compatibility | Weichai WP10, WP12 (290–420 HP) |
Note: This part is also listed as compatible with HOWO A7 (K2841 type). Always verify OEM number and physical mounting points against your original part before ordering.
Technical Specifications
| Parameter | Specification |
|---|---|
| OEM Part Number | DZ91259190042 |
| Product Type | Oil Bath Air Filter Assembly (Air Filter Housing with Cartridges & Filter) |
| Filter Type | Combined: Centrifugal Pre-cleaner + Oil Bath + Wire Mesh Element |
| Filter Element Size | K2841 |
| Material (Housing) | High-Strength ABS Engineering Plastic |
| Material (Filter Media) | Double-layer composite glass fiber filter paper + pre-filter cotton |
| Filtration Precision | ≥99.5% (for particles 0.3μm and larger) |
| Operating Temperature | -30°C to 80°C |
| Power Range | 290–420 HP (Weichai WP10, WP12) |
| Weight (Approx.) | 24–33 kg (varies by configuration) |
| Package Dimensions | 765 × 490 × 795 mm (approx.) |
| Filter Replacement Cycle | Every 20,000 km (standard); 15,000 km (dusty conditions) |
| Housing Service Life | ≥3 years |
| Quality Standard | QC/T 324-2013 |
| Place of Origin | China |
| Warranty | 12 Months |
What's in the Box
1 × Air Filter Housing (Main Body)
1 × Pre-cleaner Cartridge Set
1 × K2841 Main Air Filter Element
Required gaskets, seals, and mounting hardware (as per factory configuration)
product key technologies
- Installation: Direct bolt-on replacement. No modifications required. Ensure all clamps and latches are securely fastened to maintain an airtight seal.
- Maintenance: Periodically inspect the dust bowl and pre-cleaner cartridges. Under normal conditions, replace the filter element every 20,000 km. In dusty or high-contamination environments, reduce the interval to 15,000 km.
- Warning: Do not operate the vehicle with a damaged housing or improperly sealed filter assembly. Air bypass can introduce abrasive dust into the engine intake, causing accelerated wear.
-
Why Choose Our DZ91259190042 Asse01.Inmbly?Installation & Maintenance Notes
Genuine OEM Quality: Manufactured to exact original specifications for perfect fit and function.
Proven Reliability: Trusted by fleet operators, repair shops, and parts distributors worldwide.
Global Shipping: Competitive freight rates with Ex-Works, FOB, CIF, and CFR options available.
Flexible Ordering: MOQ from 1 piece; mix-loading with other auto parts to optimize shipping costs.
Dedicated Support: 12-month warranty and responsive customer service for all inquiries.
FAQ
01.Is this a genuine Shacman part?
02.Which truck models does this fit?
03.How often should I replace the filter element?
04.Does the housing require oil to be added?
05.What is the warranty period?
06.Can you ship to my country?
Ready to order? Contact us for pricing, bulk discounts, and shipping quotes. We respond to all inquiries within 24 hours.
