Concrete Mixer Truck
Liangshan Yalong Vehicle Sales Co., Ltd. is a leading enterprise specializing in the international sales and market expansion of heavy-duty vehicles. Established in 2018 and headquartered in Liangshan County, Jining City, Shandong Province-China's renowned specialized vehicle production base-we are a sister company of Liangshan Yalong Machinery Manufacturing Co., Ltd. Leveraging Liangshan Yalong Machinery's profound expertise in trailer manufacturing, we are committed to providing customers with high-quality, cost-effective commercial vehicles and components, earning an outstanding reputation in the global market.
Quality Assurance
Leveraging Liangshan Yalong Machinery's profound expertise in trailer manufacturing, we are committed to providing customers with high-quality, cost-effective commercial vehicles and components.
Advanced Equipment
Equipped with advanced production equipment and efficient production processes, we boast a comprehensive product testing assembly line and a computer-aided design system.
Product Export
African market: A model of high cost performance and durability. Middle East market: a leader in the infrastructure wave. Southeast Asian market: innovation and technology lead the trend. The Southeast Asian market is centered on Indonesia and Thailand.
Certification
Our products have obtained both the 3C mandatory certification and the ISO 9001 international quality management system certification.
SPECIFICATION
|

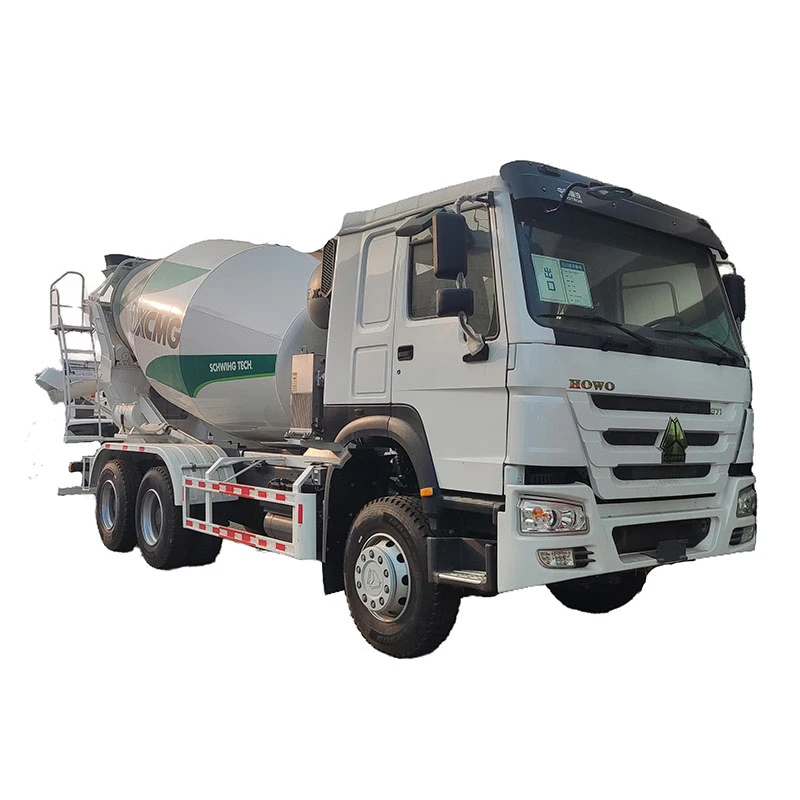

SINOTRUK HOWO 6×4 Concrete Mixer Truck |
|
|
Cab |
HW76 Cab,Single bed,Air conditioner |
|
Dimension(Lx W xH)(mm) |
9040×2500×3890mm |
|
Total mass(kg) |
25000kg |
|
Kerb mass(kg) |
13220kg |
|
Rated mass(kg) |
11650kg |
|
Approach / departure angel |
16/24 |
|
Front/rear suspension(mm) |
1500/2365 |
|
Max. gradeability (%) |
28 |
|
Engine brand |
CNHTC Engine |
|
Engine model |
WD615.95C,340hp |
|
Rated output power |
249kw |
|
Torque(N.m r. p. m) |
1490N.m/1200-1500rpm |
|
Rated speed(rpm) |
1900rpm |
|
Emission Standard |
E-III |
|
Fuel type |
Diesel |
|
Displacement(L) |
9.726L |
|
Driving type |
6×4 |
|
Axle number |
3 |
|
Wheel base(mm) |
3825+1350mm |
|
Clutch |
φ430 diaphragm spring |
|
Gearbox |
HW19710,10 Forward&2 Reverse,Manual |
|
Front axle |
HF9 Drum brake 9000kg |
|
Rear axle |
HC16 2×16000kg |
|
Steering |
ZF 8118 left-hand drive(LHD) |
|
Type |
12.00R20,10+1pc |
|
Tank capacity(L) |
400L |
|
Max. speed (km/h) |
90km/h |
|
Color |
Optional |
|
Tank Volume(m³) |
10m³ |
|
Pump, Motor, Reducer |
Lmported parts |
Specialized Cab
Safe and secure
1
>>
Built for the driver
2
>>
Convenient access for maintenance
3
>>
Attractive styling
4
>>
Panoramic monitoring (optional)
5
Improved Braking
By fully utilizing exhaust valve braking technology, braking distance has been reduced by 15%, and brake lining wear has decreased by 50%. It uses a high-volume air compressor, high-quality piping, and new sealing technology, which shortens air build-up time and brake response time.
Energy-saving Technology
The engine's dual power mode, combined with the unique intelligent transmission's power-matching technology, results in a 10% fuel savings.
Low Deck Technology
The frame is made from high-strength special steel plates, improving reliability and safety. It uses an original subframe-free structure combined with a hollow front and back-end design, lowering the vehicle's center of gravity by 100mm and making it lighter.
Leading-Edge Steering Technology
The large displacement power steering pump reduces operator effort by 40%. Optimizing the chassis geometry and front axle steering angle reduces the minimum turning radius by 15%.`
Anti-Buildup Technology
The three-section blade provides an efficient discharge angle.
The flushing device, innovative front taper, and ball-crown connecting structure are installed at the rear taper to clear stagnant aggregate from the dead space and prevent aggregate from piling up at the front and rear tapers. As a result, the residual rate at the discharge port is reduced to 0.4%.
Smart Operating Technology
Each truck is equipped with a GPS system, which offers five functions: vehicle monitoring, record/playback, alarm reporting, fleet management, and statistics and analysis. With this system, you can track the mixer truck's location, maintenance items, discharge details, etc.
Maintenance Tips
The dashboard-mounted monitor provides maintenance alarms for key truck components, such as the engine, axle, and transmission, to help facilitate maintenance scheduling.
1.CNC laser blanking, small errors, and high precision.
2.The tank uses a center-axis positioning fixture for welding, effectively ensuring the coaxial alignment and roundness of the different cones.
3.Digital automatic welding is used in the welding seam of the butt cone section of the tank, which provides high production efficiency, good weld shape, and high quality.
4.Sandblasting is used for the tank and its parts.
5.The "Four Spray, Four Bake" spraying process, including primer, intermediate coat, paint, and color bar, ensures bright, durable paint with customized patterns to meet customer needs.
6.The vehicle assembly process is designed reasonably, with a strict and orderly quality control system, ensuring the manufacturing of high-quality products.
