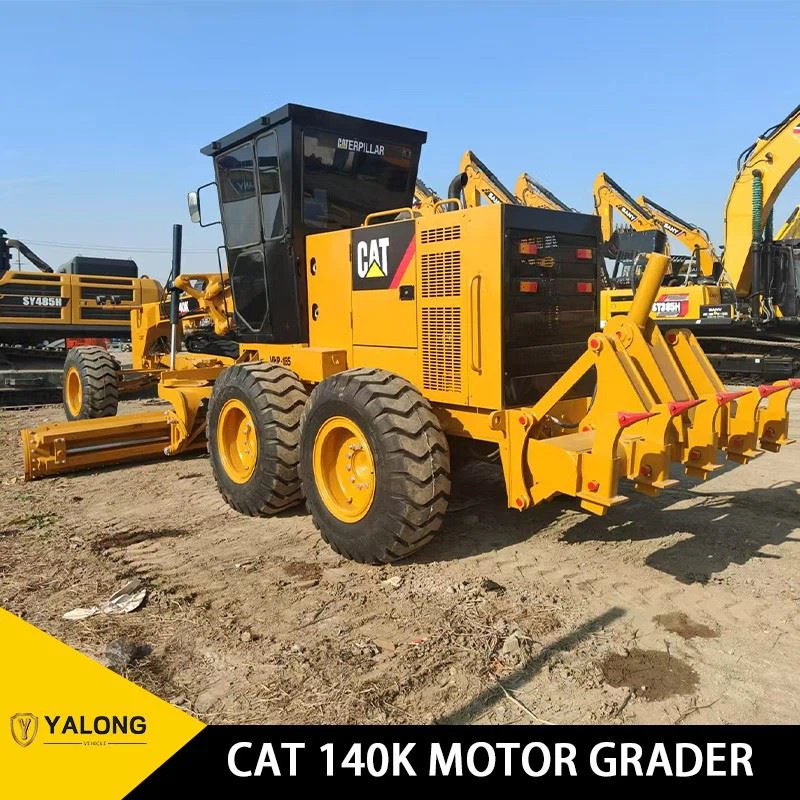

Cat 140K Motor Grader
Engine type: turbocharged, air-to-air intercooling, electronically controlled high-pressure common rail
Rated power: 173 kW (232 hp)
Displacement: 9.3 liters
Drive mode: rear-wheel drive (all-wheel drive optional)
Hydraulic system: Load sensing hydraulic system
Caterpillar 140K motor grader
Accurate and efficient, easily cope with complex working conditions, achieve ultimate flatness and operational economy
The Cat 140K motor grader is a precision tool built specifically for high-standard projects. We understand that construction efficiency and cost control are key to your profitability. Equipped with an advanced powertrain and intelligent hydraulic control, the 140K offers unparalleled control response speed, allowing operators to easily complete a variety of operations from rough leveling to fine finishing, greatly improving construction efficiency and leveling quality. At the same time, its excellent fuel economy and sturdy and reliable body structure can effectively cope with diverse and harsh working conditions overseas, significantly reducing your downtime and long-term maintenance costs. This means shorter project cycles and a higher return on investment. Choosing the Caterpillar 140K is not just choosing a piece of equipment; it is also choosing a strong guarantee of efficiency, precision, and profitability for your project.
CORE STRENGTHS
Extreme reliability significantly reduces maintenance costs and guarantees return on investment.
Conquer tough construction sites and say goodbye to delays!
Are you tired of a little rain turning the entire construction site into a muddy mess, trapping equipment, and delaying the project indefinitely? Every day of delay means your precious profits are being lost! The Cat 140K motor grader is your breakthrough weapon. It has powerful traction, a sturdy chassis, and excellent passability, and is designed to conquer the most demanding working conditions. Whether it is deep mud, soft sand, or bumpy temporary roads, the 140K is as stable as a rock and can operate with precision. It can not only "go further", but also "do better", ensuring that your project can proceed as scheduled regardless of sunshine or rain. Don't let harsh terrain slow down your progress anymore - choose the Cat 140K and make efficient construction your normal life!
Precision and efficiency are the wings of your profit!
If leveling accuracy doesn't meet standards and repeated revisions are necessary, not only will fuel be wasted, but it will also relentlessly eat away at your work hours and profits! The Cat 140K understands your ultimate pursuit of "getting it right the first time." Equipped with a responsive intelligent hydraulic system and intuitive, precise control technology, the operator can easily achieve perfect leveling, from bold strokes to meticulous craftsmanship. This means top-notch construction quality, less repetitive work, and significantly improved overall efficiency. Whether building a high-standard road base or meticulous site leveling, the 140K can help you deliver better results in less time. Time is money, let the Cat 140K help you win both!
Stop worrying about gas monsters and repair bills!
Are you feeling overwhelmed by rising fuel prices and unexpectedly high repair bills? The Cat 140K is built to save you every penny. Its highly efficient and fuel-efficient powertrain delivers powerful performance while significantly reducing fuel consumption, directly reducing your daily operating costs. More importantly, its proven reliability and durable design mean less downtime and lower long-term maintenance costs. This is a wise investment that not only performs its mission well but also delivers a higher return on your investment through unmatched operating economics. Choosing the Cat 140K means choosing a reliable asset that will earn and save you money around the clock!
Detailed technical specifications
| Category | Specification Item | Details |
|---|---|---|
| Engine & Power | Model | Caterpillar C9.3B |
| Type | Turbocharged, Air-to-Air Aftercooled, Electronically Controlled | |
| Rated Power (Net) | 173 kW (232 hp) | |
| Displacement | 9.3 L | |
| Emission Compliance | China Stage IV / EU Stage V / U.S. EPA Tier 4 Final | |
| Transmission | Type | Caterpillar Power Shift, Countershaft Transmission |
| Speeds | 8 Forward / 4 Reverse | |
| Drive Type | Rear-Wheel Drive (All-Wheel Drive Optional) | |
| Blade & Circle | Blade Length (Std.) | 3962 mm (13 ft) |
| Blade Height | 787 mm (31 in) | |
| Max Cutting Depth | 546 mm (21.5 in) | |
| Blade Movements | Lift, Lower, Side Shift, Tilt, 360° Continuous Pitch (Rotate) | |
| Circle Diameter (Opt.) | 4267 mm (14 ft) | |
| Hydraulic System | Type | Load-Sensing Hydraulic System |
| Feature | Provides precise, responsive control with on-demand flow. | |
| Chassis & Running | Front Tires | 14.00-24 (Standard) |
| Rear Tires | 23.5R25 | |
| Steering Modes | Front Wheel, Rear Wheel, Articulation, Crab (All-Wheel) | |
| Dimensions & Weight | Overall Length | ~ 9220 mm (30 ft 3 in) |
| Overall Width | ~ 2590 mm (8 ft 6 in) | |
| Wheelbase | ~ 7110 mm (23 ft 4 in) | |
| Operating Weight | ~ 16,500 - 17,500 kg (36,375 - 38,580 lb) | |
| Key Technologies & Features | Control Systems | Cross Slope (Optional) for automatic cross-slope control. |
| AccuGrade® Ready (Optional) for GPS/Laser grade control. | ||
| Cab | C-Series Cab, excellent visibility, low noise, with Advanced Touchscreen Display. | |
| Serviceability | Cat® Electronic Standardized Service Intervals (ESSI), extended maintenance intervals. |
The standard configuration is not merely about meeting requirements; exclusive customization is more in line with what you desire. We offer flexible product customization (such as vehicle color, drive type, driving mode: left-hand drive/right-hand drive, optional rearview camera, etc.), and have a professional team providing full support throughout the process. Share your ideas with us and we will create an exclusive solution for you.
Why choose us?
What we sell is not just equipment, but a long-term commitment: as professional advisors, we will help your business achieve success.
Key components of the entire vehicle are covered by a one-year replacement policy upon delivery.
With 7 years of experience in exporting complete vehicles and accessories, and having exported to over 30 countries.
Technical support, remote video support, local driver training services, providing vehicle consumable parts sales service for up to ten years, so that you don't have to worry about not being able to obtain the original vehicle parts.
We can customize according to your specific project requirements.
Social identity
Cooperation Case
We have been closely cooperating with customers from all over the world. And all of our partners are highly satisfied with our products and services, and have maintained a long-term cooperative relationship with us. We look forward to your consultation. Let's work together to achieve great success!
From our port to your port
Every product that leaves the port carries our commitment to global customers. This is not just the start of the product, but a voyage of trust. From our production line to your construction site, across mountains and seas, the mission will be accomplished. Choosing us means choosing not only sturdy and durable equipment, but also a reliable global service guarantee that is punctual, efficient and dependable. The world is vast, and we will deliver on time.
Miscellaneous
What are our target markets?
Our trucks are primarily sold in the following markets:
① Africa, including Nigeria, Senegal, Zimbabwe, Zambia, Tanzania, Ghana, Burkina Faso, Congo, etc.;
② South America, including Venezuela, Peru, Jamaica, Costa Rica, Barbados, Guatemala, Guyana, etc.;
③ Central Asia, including Kazakhstan, Kyrgyzstan, Uzbekistan, Pakistan;
④ Southeast Asia: the Philippines, Vietnam, Laos, Indonesia, etc.
How do we transport the trucks?
Typically, we assist in shipping the vehicles to the destination port. We mostly use bulk carriers for transportation, unless the port does not accommodate them, in which case we use roll-on/roll-off (RoRo) ships.
If you have your own partnered shipping company, we can only provide an FOB (Free On Board) quote, delivering the vehicles to the port of shipment. Your freight forwarder will then handle the loading and transportation. The shipping time depends on the distance to the destination port.
What is our delivery time?
Generally, the delivery time is about 25 days. Some models can be delivered within 15 days. For specific delivery times, please contact our customer service.
How do we ensure the vehicles arrive in the customer's country after payment?
To demonstrate our sincerity, we are willing to accept a 30% T/T (Telegraphic Transfer) deposit. When the vehicles are ready, we can provide a video for you to confirm their condition. Alternatively, you may send someone to inspect the vehicles. Once you are satisfied, please pay the remaining 70% balance, and we will proceed with shipment.
After-sales service.
I assure you that all vehicles sold to you are thoroughly inspected before shipment to ensure the engine and all wiring are in proper condition.
If you need to replace any parts in the future, we will provide components at below-market prices. Additionally, we offer technical support, as we have our own factory and technical team.
Choosing the Cat 140K means more than just choosing a machine; it means choosing a reliable, 24/7 partner. Act now to maximize returns for your business!
