Imagine a light-duty truck fully loaded with construction materials trying to restart halfway up a steep mountain road. The engine roars, but the truck struggles to move. Since China's latest regulations limit blue-plate trucks to engines of no more than 2.5 liters, many operators working in mountainous regions have faced this challenge.

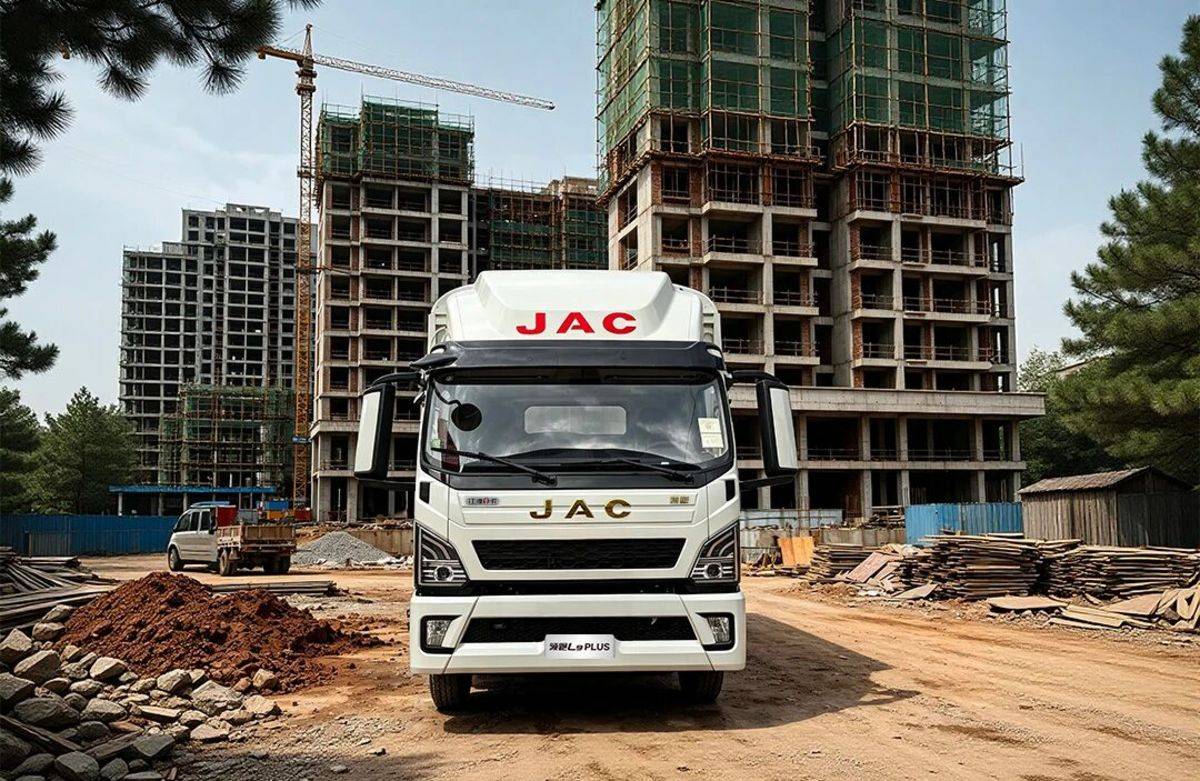

The JAC Leading L9, powered by the Yuchai 190 HP engine, is engineered specifically to overcome these demanding conditions. Combining legal compliance, fuel efficiency, powerful performance, excellent payload capacity, engineering-grade safety, and superior driver comfort, it provides a reliable solution for heavy-duty transportation in mountainous terrain.
Reliable Power That Climbs with Confidence
Rather than focusing solely on engine displacement, the Leading L9 maximizes real-world driving performance.

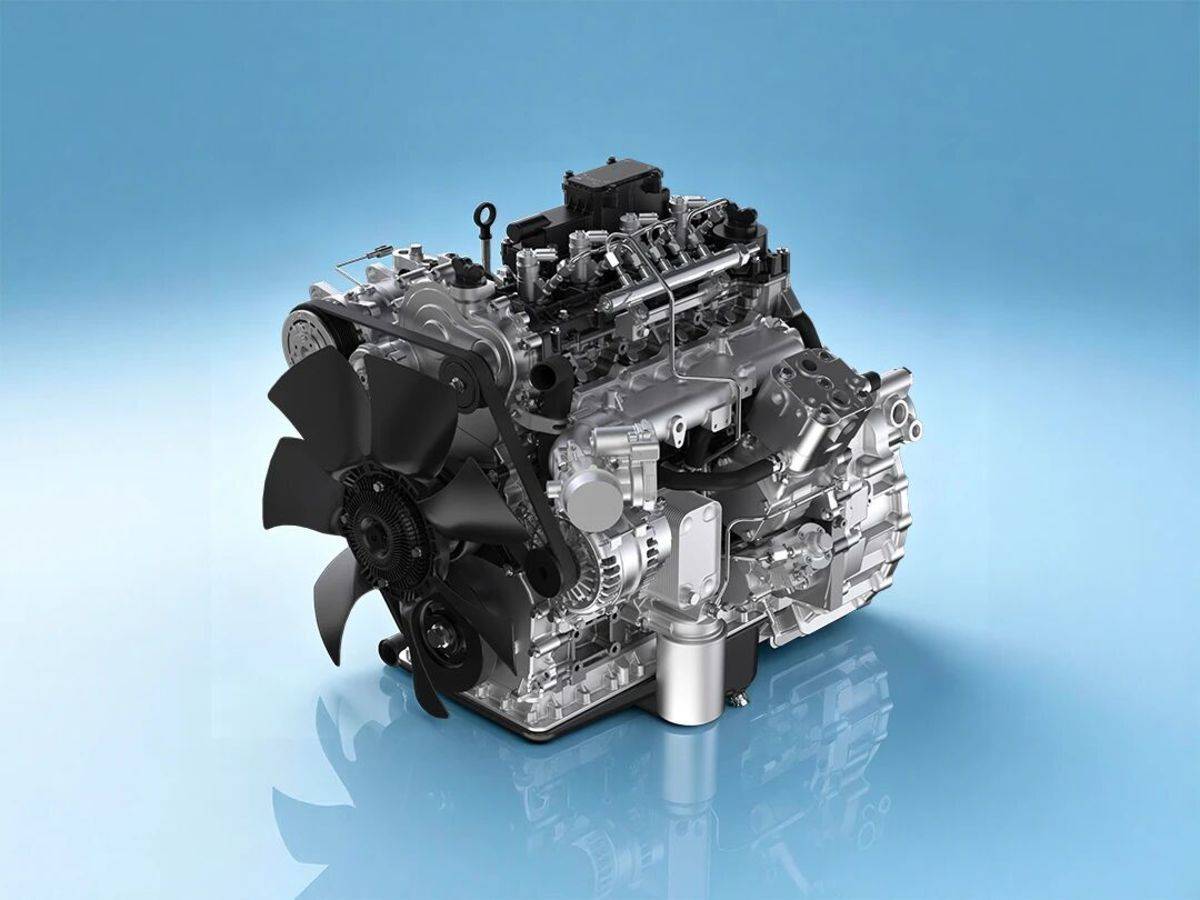

Its Yuchai 190 HP diesel engine adopts a small-bore, long-stroke design, delivering 350 Nm of low-speed torque and up to 500 Nm of peak torque. This provides excellent pulling power when starting with a full load or climbing steep gradients.
Heavy-load uphill driving places two to three times more stress on an engine than normal highway operation. To maintain stable performance, the engine features a high proportion of lightweight aluminum alloy components and an optimized cooling system with increased coolant capacity, ensuring efficient heat dissipation even under continuous heavy loads.
Power is transmitted through a Fast 8-speed or 10-speed synchronized gearbox, providing smooth shifting, reduced gear wear, and improved transmission durability during frequent gear changes on mountain roads.
Five-Star Chassis Built for Maximum Payload
Heavy cargo demands a strong foundation, and the Leading L9 delivers with its high-strength five-star chassis.
The truck features an extra-large 216 mm double-layer frame with an 865 mm frame width, combined with a 3-ton front axle and either a standard or reinforced 8-ton rear axle.
Multiple suspension configurations are available, including 76 mm or 90 mm leaf springs with various spring combinations, allowing operators to choose the ideal setup according to their daily payload requirements.
Additional heavy-duty chassis components include:
~One-piece cast iron spring hangers
~Reinforced rear protection
~Final drive ratios of 4.33, 4.875, and 5.286
Customers can choose from cargo, box, stake, refrigerated, or flatbed bodies, making the truck suitable for general freight, regional logistics, cold-chain transportation, construction materials, and engineering projects.
Engineering-Grade Safety for Demanding Operations
Safety is essential for heavy-duty transport in mountainous regions.
The Leading L9 adopts engineering dump truck safety standards throughout the drivetrain.
A 350 mm heavy-duty clutch provides excellent resistance to wear during frequent hill starts and repeated clutch engagement under full load.
The two-piece driveshaft design shortens each shaft section, allowing it to absorb higher torque loads while reducing vibration, improving gearbox protection and long-term reliability.
Its braking system is equally impressive.
Standard engine exhaust braking significantly reduces brake wear during long downhill descents. Large brake chambers combined with three air reservoirs ensure stable braking performance even during continuous heavy braking.
An optional 300-liter aluminum fuel tank extends driving range, creating a transportation solution that can travel farther, stop safely, and operate reliably in demanding environments.
Spacious, Intelligent and Comfortable
Power and payload improve productivity, while cab comfort improves driver satisfaction.
The Leading L9 features a 2,090 mm extra-wide cab, one of the widest in its class.
A nine-level adjustable suspension seat, 160-liter storage compartment, external sun visor, and convenient two-step entry make long working days more comfortable.
Standard equipment includes:
~Power windows
~Central locking

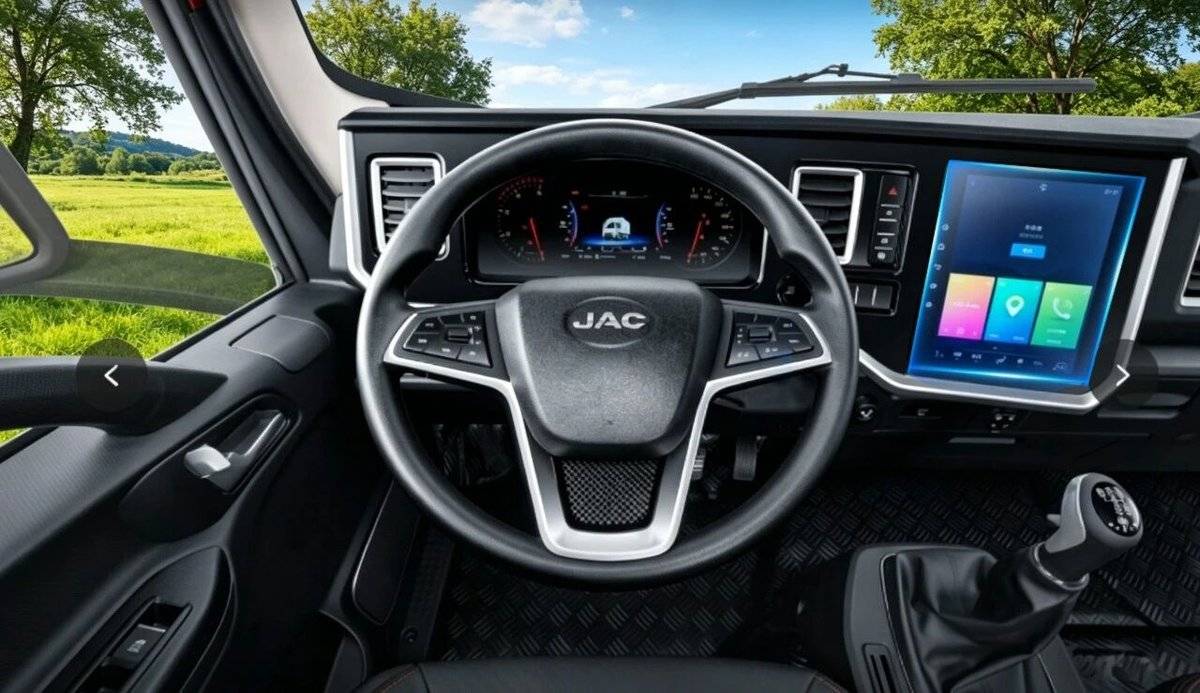

~Multifunction steering wheel with cruise control and entertainment controls
~Heated exterior mirrors
Optional upgrades include:
~7-inch LCD instrument cluster
~MP5 multimedia system with reversing camera and connectivity
~LED headlights
Designed for harsh operating environments, the truck also features dual 70 Ah batteries with a master power switch, a floor-mounted accelerator pedal, and a dust-proof screen in the half-row cab, making it ideal for construction sites, mines, and other demanding workplaces.
Built to Redefine Heavy-Duty Light Trucks
The JAC Leading L9 with the Yuchai 190 HP engine combines fuel-efficient power, outstanding payload capacity, engineering-grade safety, and a spacious intelligent cab to redefine the value of heavy-duty light trucks for mountainous transportation.
By reducing climbing stress, improving carrying capability, enhancing safety, and minimizing driver fatigue, the Leading L9 delivers long-term value for fleet owners and owner-operators alike.
For businesses that demand dependable performance in mountainous and heavy-load applications, the Leading L9 stands out as a new benchmark in its class.
